Gryphon Audio Designs: T.H.E. Show 2023

Gryphon Audio Designs brought one of the most impressive sounding systems we’ve ever heard to T.H.E. Show 2023.

Gryphon Audio Trident II Loudspeakers with Apex Amp at T.H.E. Show 2023

Gryphon Audio had the coveted corner room upon entering T.H.E. Show 2023 at the Hilton Orange County in Costa Mesa, CA. Not only was it near impossible to miss, it was the only high-end audio room that required a reservation just to listen. eCoustics founder, Brian Mitchell barely made it into the last demonstration on the last day after a mere 90-minute wait. The room was booked solid throughout the 3-day event, with back-to-back 20-person listening sessions every 30 minutes.

What was so interesting? The Danish manufacturer was demonstrating their cost-no-object components and loudspeakers which deliver performance that takes a backseat to nothing.

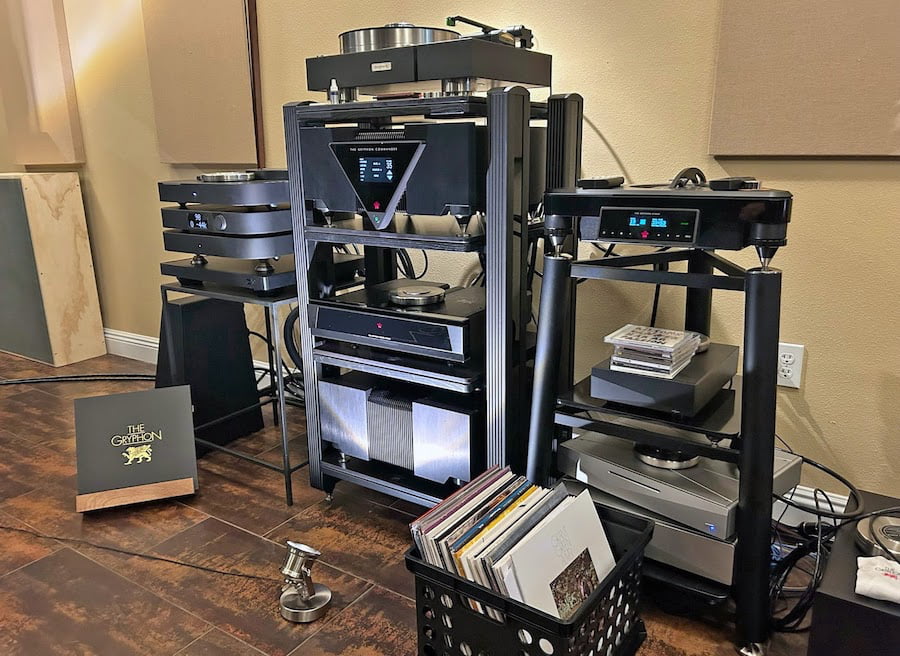

Gryphon Audio Rack at T.H.E. Show 2023

Gryphon has two-noted designers on its staff; Flemming E. Rasmussen who are primarily responsible for the industrial design, whilst Tom Møller is responsible for the audio engineering side of its products.

Tip: Gryphon products are designed and manufactured in Denmark.

Here is an overview of what Gryphon brought to T.H.E. Show 2023.

Gryphon Trident II Loudspeakers

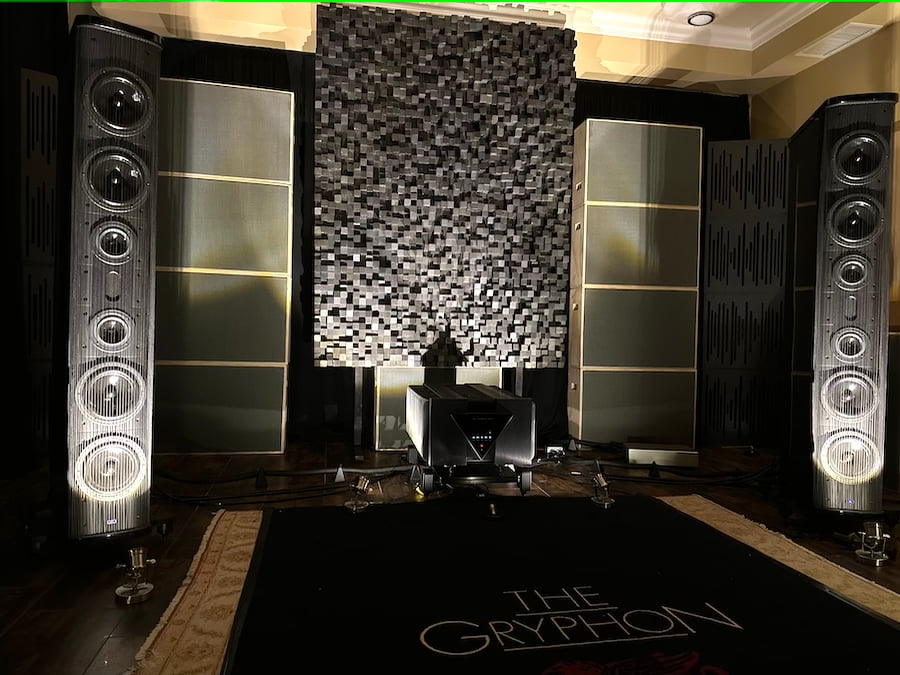

Gryphon Audio Trident II Loudspeakers

The Gryphon Trident II is a three-way loudspeaker with an onboard bass amplifier and braced enclosure with a contoured baffle. The contoured baffle minimizes reflections and eliminates unwanted diffraction.

Other features include:

  • Constant Phase crossover: This supports perfect phase at all frequencies at all times
  • System response: 16 – 27 kHz, -3dB (depending on Q setting and room size)
  • Time-aligned Front Baffle Curvature: This provides identical arrival time from all drivers at the listening position
  • AMT Tweeter: Ultra-fast Air Motion Transformer tweeter with low-mass pleated metal diaphragm
  • Danish Bass: Customised, extensively modified Danish bass and midrange drive units
  • Speaker Cones: Special cone surround termination to eliminate edge reflections
  • Symmetrical Array: The Trident II has a vertical driver array for ideal point source presentation
  • Bass Drivers: Four Gryphon 8″ bass drivers for extreme speed and precision with massive air displacement
  • Bass Amplifiers: Custom-designed Gryphon bass amplifiers capable of delivering 500 Watts continuously per channel
  • Q Controller: Integrated Linkwitz-Greiner Q Controller with preset and custom Q settings for ideal low-frequency integration in any room
  • Remote Control: This allows Q setting, Bass Level, Mute, and Low Cut adjustments
  • Enclosure: The Trident II features a sealed cabinet with extensive internal bracing
  • Damping Materials: Pure wool and synthetic interior damping materials.
  • Grill Design: Stylish string grille for driver protection
  • Finishes: Virtually unlimited custom finish options

The Gryphon Trident II Loudspeakers are priced at $139,500/pair

Gryphon Apex Stereo Amplifier

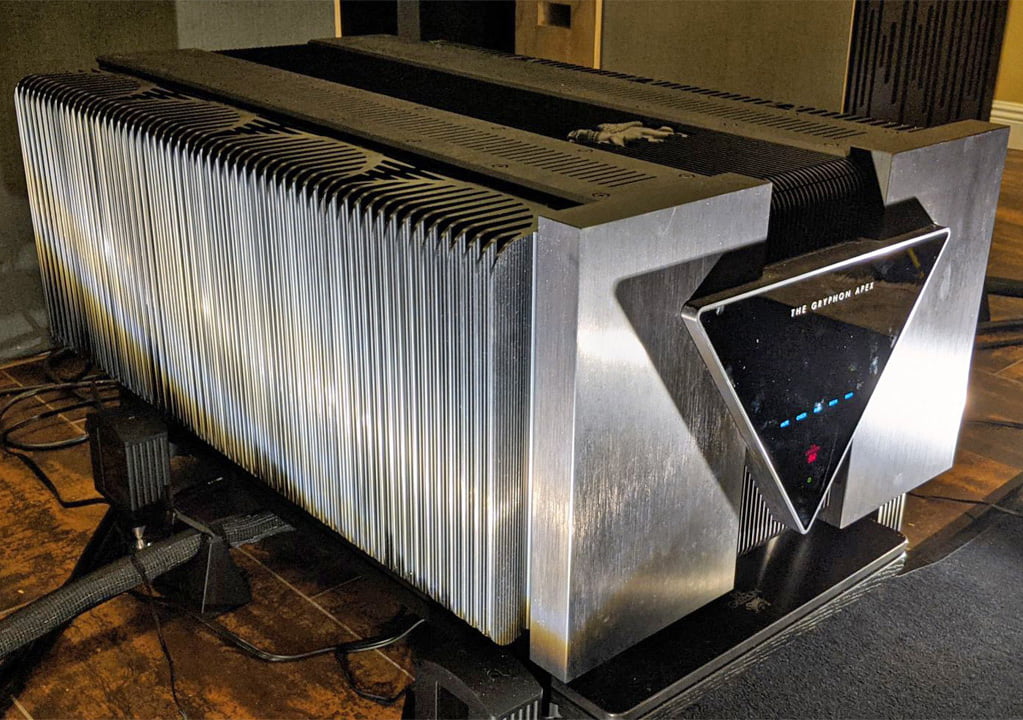

Gryphon Audio Apex Amplifier at T.H.E. Show 2023

This is a 450-pound behemoth featuring a pure class A design. The Gryphon Apex can deliver almost 1700 watts RMS (1 ohm as a mono block). The Apex’s output section uses high-current bipolar output devices which are both reliable and provide excellent sonic performance. The output devices can deliver high peak power output per channel without overload. The output transistors are locally decoupled with an array of ZN film capacitors.

The Apex driver section incorporates a separate, optimized power supply fed from individual windings on the custom-made toroidal transformers.

The mechanical design of the Apex ensures optimal thermal tracking between drivers and output devices. This driver section features its own generous bank of the finest capacitors available for this application.

Advertisement. Scroll to continue reading.

The power supply also utilizes capacitors especially chosen for this design. Zero global feedback is employed and DC coupling utilizes DC servo circuitry. Internal wiring in the signal path is kept to an absolute minimum. Gryphon Vanta single crystal solid core silver/gold cable is used for input wiring. Balanced inputs are provided (no RCA line inputs are provided).

Proprietary Gryphon speaker terminals accept bare wire, spade lugs, banana connectors, or any combination thereof.

The Apex utilizes an independent transformer and linear power supply for display and control circuits, preventing digital noise generated by these circuits from contaminating the amplifier circuits.

The Grypohon Apex Stereo Amplifier is priced at $103,500

Gryphon Commander Two-Piece Preamplifier

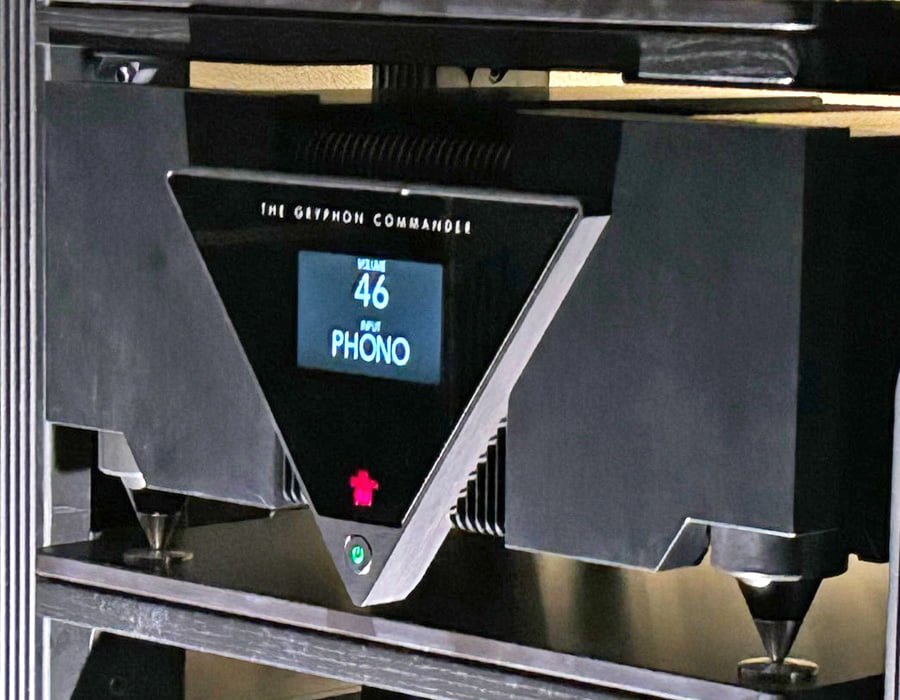

Gryphon Audio Commander at T.H.E. Show 2023
  • True Dual Mono configuration
  • Four separate custom-made 36VA toroidal transformers, two for each channel/
  • Adjustable channel balance, source level matching, start-up volume, and maximum volume level
  • Massive power supply capacitor bank for each channel (2 x 90.000uF)
  • Separate linear power supply for both digital and individual left/right channel analog circuits
  • Fully regulated extremely low noise power supply for all voltage amplifying stages
  • Separate mechanical chassis for Power Supply and Amplifier circuits

The two-piece Gryphon Commander is priced at $67,000

Gryphon Ethos CD player

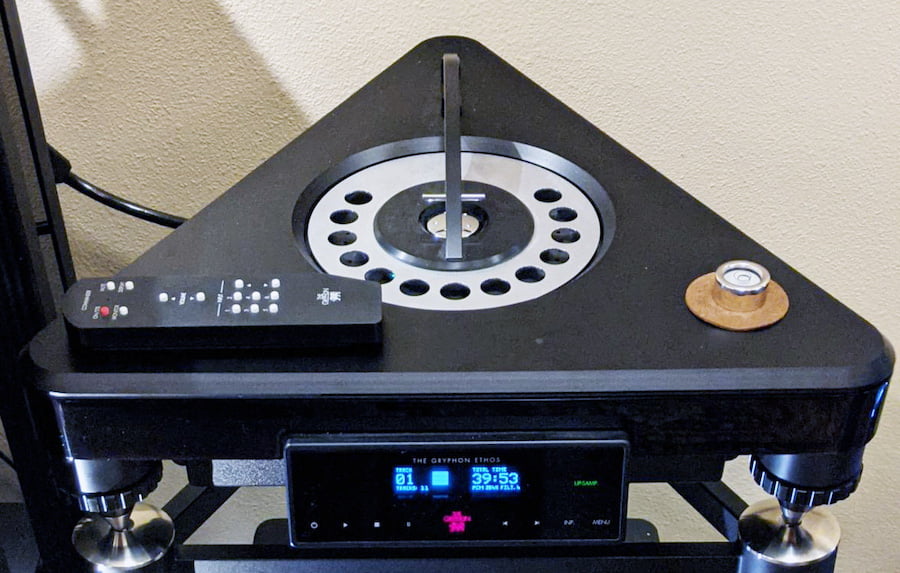

Gryphon Audio Ethos CD Player at T.H.E. Show 2023

Who says no one listens to CDs anymore? Not only do people still listen to CDs, but some CD fans are willing to spend a small fortune to buy a high-end CD player such as the Gryphon Ethos

Featuring a triangular exterior design, the Ethos not only includes CD playback but also a built-in DAC featuring ESS SABRE ES9038PRO 32-bit D/A converters for playback from USB sources, including Hi-Res audio files.

The Gryphon Ethos is priced at $39,800

Other Gryphon Components Shown

Even More Stuff!

To round out their product showcase, Gryphon also included audio components from other high-end brands including the following.

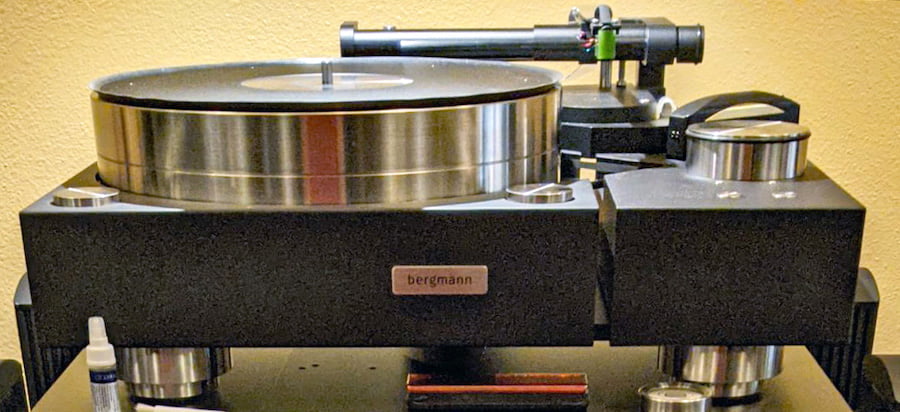

Bergmann Turntable in the Gryphon room at T.H.E. Show 2023

Total audio system: $518,290 + room treatments (?) + cables (?)

Gryphon’s room was presented by Joseph Cali Systems Design, located at the Pacific Design Center in West Hollywood, CA 90069.

For more information: gryphon-audio.dk

Advertisement. Scroll to continue reading.

More Coverage of the T.H.E. Show 2023 >

1 Comment

1 Comment

  1. Dan Thomas

    June 19, 2023 at 9:03 pm

    I made it into the first throng of listeners on Saturday morning. The highs were a bit bright and off-putting for my taste.

    What I took away from that listening experience is a new- found appreciation for the far-less-expensive system that I have put together.

    All my components were auditioned in my own home with the rest of my other components.
    It’s really the only way to audition components.

Leave a Reply

Your email address will not be published. Required fields are marked *

Advertisement

New Products

WiiM Ultra Network Streamer Front

Digital Music Systems

At $329, WiiM Ultra is the company's top-of-the-line digital music streamer which adds a touchscreen, HDMI ARC and a subwoofer out.

WiiM Amp Pro powered network streamer WiiM Amp Pro powered network streamer

Digital Music Systems

WiiM just launched an upgraded audiophile-friendly version of their popular powered streamer at a nominal premium over the standard version.

Q Acoustics 3000c loudspeaker series in new pin oak finish Q Acoustics 3000c loudspeaker series in new pin oak finish

Bookshelf Speakers

Priced from $399 to $1,199 a pair, the Q Acoustics 3000c loudspeaker series includes five new models along with new finishes.

Sonus faber G2 Sonetto III Loudspeaker pair in walnut Sonus faber G2 Sonetto III Loudspeaker pair in walnut

Floorstanding Speakers

Priced from $1,249 to $7,999 a pair, Sonus faber's Sonetto G2 loudspeaker series features seven new models arriving July 2024.

Dan D’Agostino Pendulum Integrated Amplifier Front with Remote Control Dan D’Agostino Pendulum Integrated Amplifier Front with Remote Control

Integrated Amps & Stereo Receivers

The $15,000 Pendulum Integrated Amplifier is the price of admission into the world of Dan D’Agostino amplification.

Dan D’Agostino Master Audio Systems Momentum C4 Preamplifier Dan D’Agostino Master Audio Systems Momentum C4 Preamplifier

New Products

At $50K, the Momentum C4 preamplifier gets a new remote and works seamlessly with optional digital streaming module for another $10K.

You May Also Like

DACs

The MSB Cascade is a cost-no-object fully balanced ladder DAC which separates functions into three units for the ultimate in signal purity.

New Products

Utilizing proprietary, Patent-Pending Hafner Tech Modules, Gryphon PowerZone Power Conditioners proclaim a higher level of performance than typical power conditioning products.

Hi-Fi Components

T.H.E. Show SoCal returns to the Hilton Orange County/Costa Mesa for the second year in row from June 7-9, 2024.

Floorstanding Speakers

For those seeking the ultimate in high fidelity music playback, the ultra luxury high-end audio market continues to innovate with loudspeakers at jaw dropping...

Music

Legendary guitarist, Al Anderson from Bob Marley & The Wailers speaks with Mitch Anderson live on stage at T.H.E. Show 2023.

Integrated Amps & Stereo Receivers

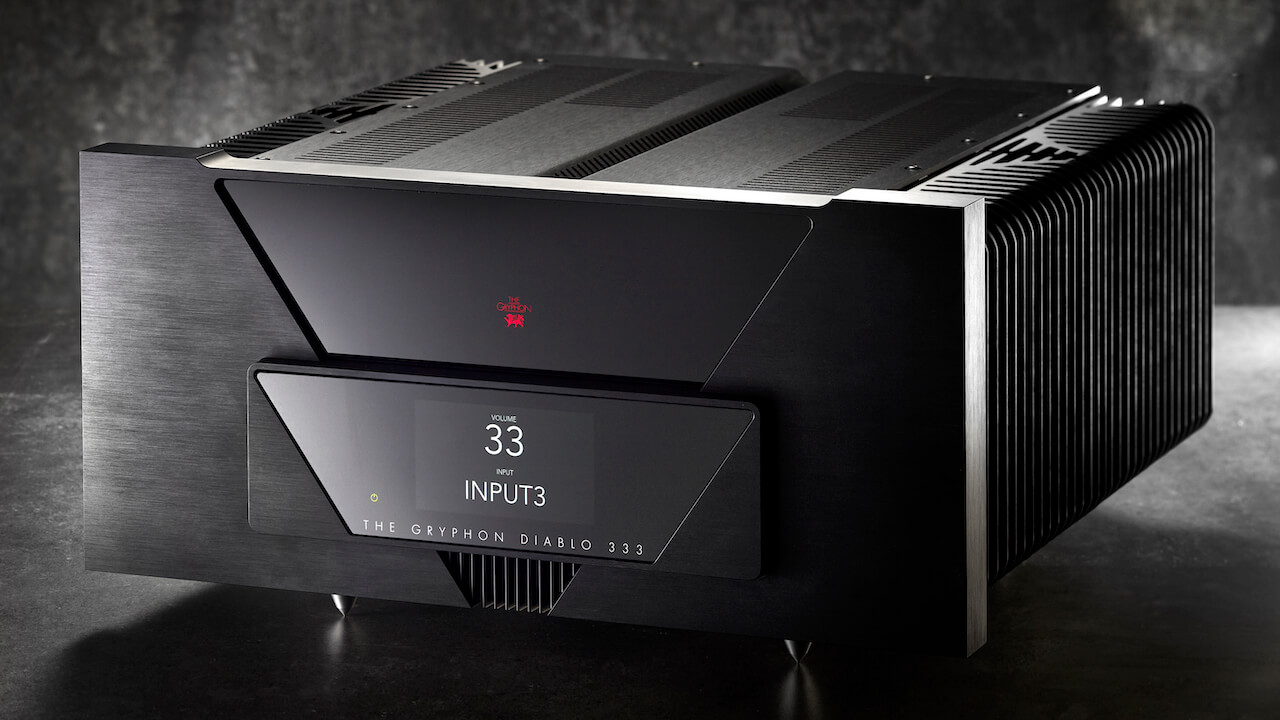

Priced from $24,990, the Gryphon Audio Designs Diablo 333 makes its case for best integrated amplifier in the world.
