Momentum is everything and FiiO entered 2024 with a lot of it based on a very strong 12 months of successful new product introductions in 2023 across multiple categories in the personal audio and desktop audio world. Their DAP lineup which includes the M11S, M11 Plus, M17, and M15S is expanding with the addition of the M23.

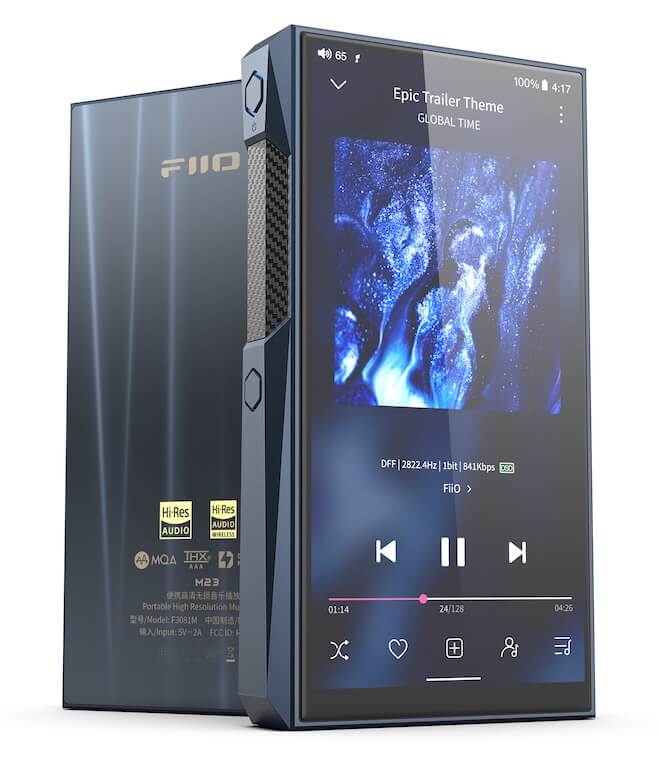

FiiO M23
The FiiO M23 digital audio player (DAP) incorporates a Qualcomm Snapdragon 660 processor that runs on a customized Android operating system with a global SRC (Sample Rate Conversion) bypass. This means that music streaming apps such as TIDAL, Qobuz, Apple Music, Deezer and more can be installed to allow hi-res lossless audio listening.
For added support, the M23 features the flagship AKM AK4191EQ + AKM AK4499EX DAC combination, which supports playback of audio files up to, and including, 24-bit/384kHz PCM, DSD256, and support for MQA.

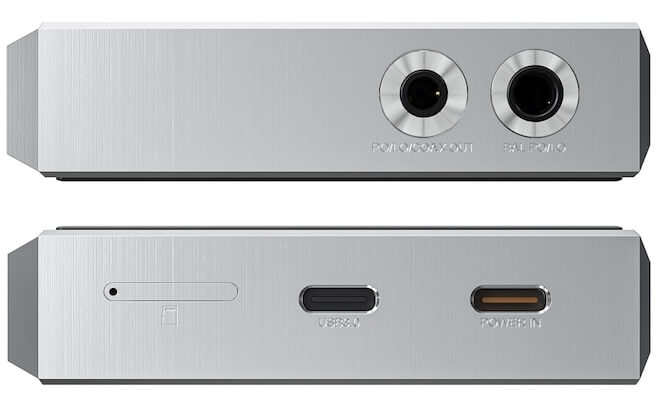

The M23 provides physical 3.5mm single-ended and 4.4mm balanced headphone outputs and single-ended/balanced line-outs. It can transmit and receive hi-res audio using aptX HD Bluetooth and LDAC wireless connectivity.
The M23 DAP works with wireless headphones and can also receive audio from a smartphone, PC, or other device and be used as a Bluetooth DAC/Amplifier.
With the external USB power option, the M23 features a ‘Desktop Mode’, allowing it to work as both a portable and desktop device. In desktop mode, the additional ‘Super-High’ gain level is available, allowing the M23 to deliver an impressive 1000mW per channel into 32 ohms.

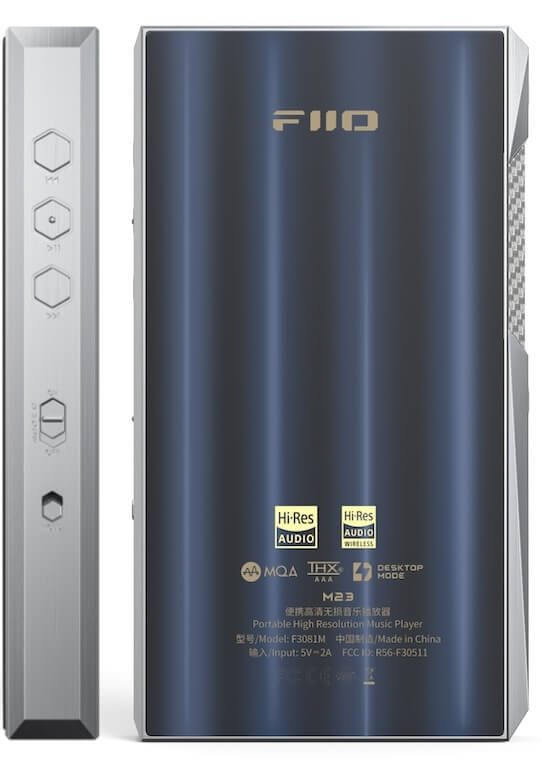

The M23 is available in either Blue Titanium or Stainless Steel and offers a 10.5-hour battery life, a 5.5″ multi-touch HD display, and onboard storage of 64GB.
Tip: The M23 also features a microSD card slot with support for up to 2TB cards.
M23 Specifications
- DAC: AKM AK4191EQ + AKM AK4499EX
- SoC (System on Chip): Qualcomm 660
- Amplifier: THX AAA-78+ (x 2)
- Display: 5.5″ 720 x 1440 (18:9 Ratio)
- Power Output: 1000mW @32Ω, 236mW @300Ω
- Gain Modes: Low / Medium / High / Super-High
- Headphone Outputs: 3.5mm (Single-ended) / 4.4mm (Balanced)
- Line Outputs: Yes (3.5mm (Single-ended) / 4.4mm (Balanced)
- Coaxial Output: Yes (3.5mm)
- Bluetooth (Receive): SBC, AAC, aptX, aptX HD, aptX LL, aptX Adaptive, LDAC
- Bluetooth (Transmit): SBC, AAC, aptX, aptX HD, LDAC
- MicroSD Slot: Yes (Up to 2TB)
- Desktop Mode: Yes
- RAM/ROM: 4GB/64GB
- Battery Capacity: 5500mAh
- Battery Life: 10.5 Hours (Full Charge)
- Audio Support: PCM up to 384kHz/24-Bit, Native DSD256
- MQA Support: Yes
- Dimensions: 136.5 x 75.7 x 18.1 (5.37 x 2.98 x 0.71 inches)
- Weight: 299g (11 oz)
- Color Variants: Blue Titanium/Stainless Steel
Availability and Pricing
The FiiO M23 DAP is available in stainless steel or blue titanium finishes. It’s priced at $700 USD (£649 / €700) and is expected to start shipping in April 2024.
Tip: The FiiO M23 Digital Audio Player be on display at CanJam New York on Saturday & Sunday, March 9-10th 2024.
