WTF is Micro OLED?

When Apple’s Vision Pro was announced last week, consumers were introduced to Micro OLED technology. Very few know what that means. We break it down.

The Apple Vision Pro Ultra High-res Display system uses Micro OLED technology.

In a companion article, we covered MicroLED display technology which is used in select large-screen video displays, but for small-screen applications, Micro OLED technology is often used.

Tip: The Apple Vision Pro headset uses Micro OLED technology.

What Micro OLED Is

Micro OLED is a technology that utilizes microscopic-sized OLED pixels for displaying images. A Micro OLED pixel contains three subpixels that natively emit light that then passes through red, green, and blue color filters. The pixels also contain the image information. Each Micro OLED pixel can be brightened, dimmed, or turned on and off.

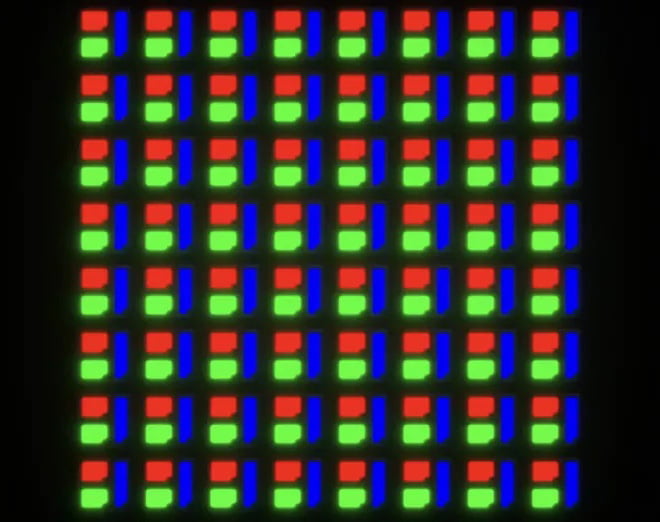

Micro OLED Pixels

Conceptually, Micro OLED technology is similar to OLED TV technology. However, the microscopic self-emitting organic OLED pixels are much, much smaller. They are even smaller than those used in iPhones (which are also smaller than those used for large-screen TVs). Also, instead of a single display panel used for OLED TV applications, the Micro OLED pixels are placed on much smaller silicon wafers that are usually less than 1-inch in size.

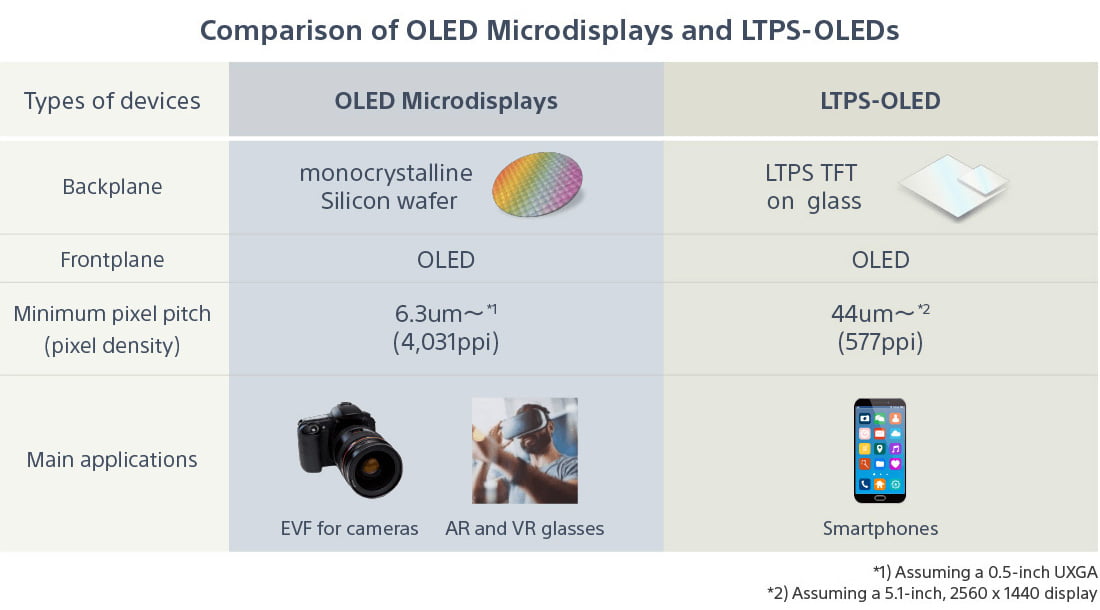

Comparison of OLED Microdisplays and LTPS-OLED

Tip: LTPS stands for Low-Temperature Polycrystalline Oxide.

Micro OLED displays are also referred to as a type of Near Eye Display (NED) technology.  The microscopic-sized pixels used, in combination with small silicon wafers, allow for high-resolution screens that are very small. As a result, the viewer doesn’t see, or get distracted, by the actual pixels as their microscopic size makes them not individually visible.

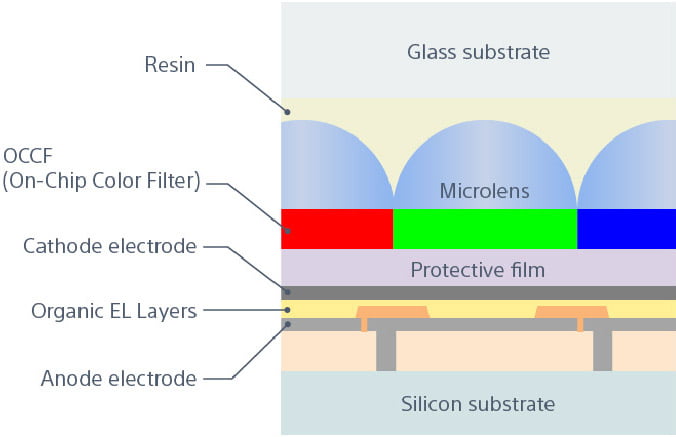

Micro OLED Structure Diagram

Tip: Micro OLED is not the same as MicroLED which uses non-organic microscopic size non-organic LED lightbulbs as the pixels.

Micro OLED Display Features

Here is a quick rundown of Micro OLED Display features.

  • Tiny, Tiny Pixels: Millions of pixels can be placed on a silicon wafer about 1-inch in size.
  • Short Distance High Light Output: Micro OLED can output produce up to 1,000 to 5,000 Nits depending on the micro OLED panel used. This also provides support for HDR.
  • Absolute Black: Just as with large-screen OLED panels, micro OLED panels can display absolute black.
  • Motion: Low latency and high refresh rate support without additional motion smoothing/processing such as frame interpolation or black frame insertion. This makes it compatible with gaming response needs for gaming.
  • Viewing Options: 2D and 3D viewing capabilities can be implemented at the discretion of the manufacturer.
  • Energy Efficient: With their small size and efficiency, battery drain is lessened.
  • Weight: No significant weight due to their extremely small size and silicon wafer construction.

Micro OLED Applications

While MicroLED technology is used in large screen applications by placing the pixels on a large panel (or small/medium sized modular panels), Micro OLED technology is targeted for use in small screen near-to-eye applications such as:

  • Smart Glasses/Goggles
  • Electronic Viewfinders in digital still and video cameras, monocular and binocular scopes, and industrial microscopes
  • Drone driving headsets
  • Medical headsets for surgery support
  • Assistive glasses for the vision impaired

Why Micro OLED is not used in TVs

Micro OLED makes a lot of sense for smaller displays but doesn’t work for any devices larger than, say a few inches. Not only would the number of Micro OLED pixels needed for a large screen TV number in the millions, but the number of silicon wafers used to hold micro OLEDs would number in the thousands. The cost of manufacturing Micro OLED chips limits production output. Also, the cost of a large-screen display using Micro OLED would be prohibitively expensive even for many wealthy consumers. In addition, limiting micro OLED production yields maintains quality control.

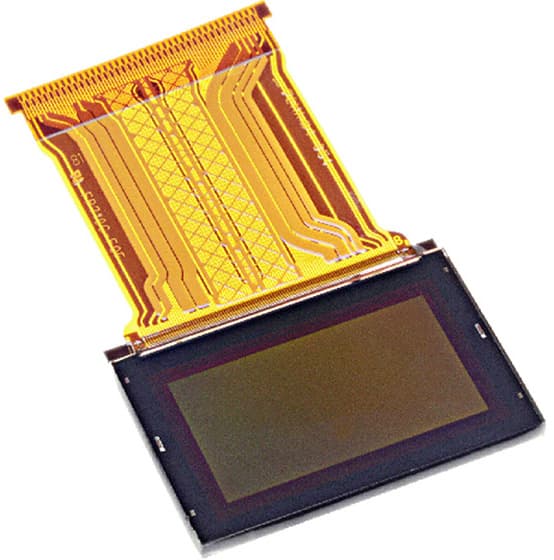

Micro OLED Chip

Limiting Micro OLED to near-to-eye small-screen applications allows a number of those being produced to be used in more products at a lower cost.

Advertisement. Scroll to continue reading.

Tip: Micro LED has similar production issues, as evidenced by the limited number of displays offered as well as extremely high prices for consumers.
